Product Details
＋
Key Features
- 7 x High-Output 3W RGB LEDs
- 25° Beam Angle
- 100% Variable Electronic Dimmer
- Built-In Color Presets and Auto Programs
- Adjustable Program Speed and Fade Times
- 3-Channel DMX Mode
- Dual Mounting Brackets
- Includes DMX Signal Cable
- IP-Rated AC Power Cord with Cap
- Includes IR Remote Control

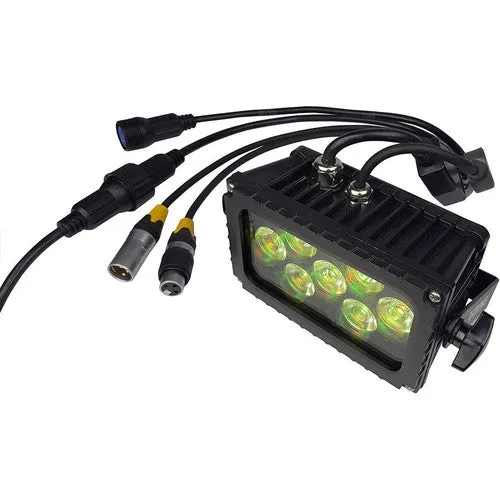

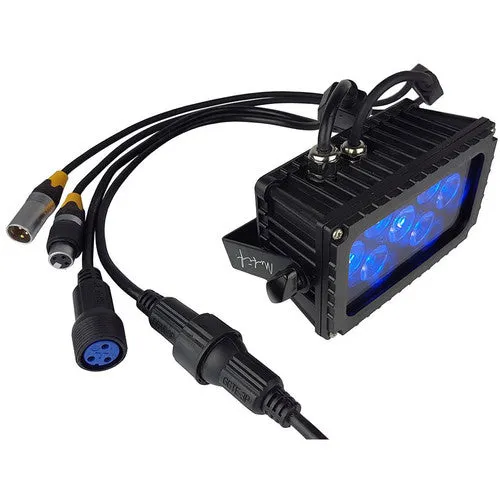

The black Blizzard Motif Sketch is a compact, rugged, IP65-rated LED fixture that's rated for outdoors and well suited for architectural lighting applications. The Sketch is powered by seven 3W TRI-color (RGB) LEDs, and it offers a wide pallet of colors from soft and gentle moods to stimulating breathtaking atmospheres.
The Motif Sketch can be controlled via the included IR remote control or from a single 3-channel DMX mode. The durable cast aluminum housing and tempered glass lens feature watertight internal gaskets to ensure it will handle the rigors of rugged, rough outdoor environments. The fixture utilizes IP-rated power pigtails and 3-pin DMX XLR connectors. The advanced heatsink is fanless for silent operation.
- Exceptional RGB color mixing from seven 3W TRI-color LEDs
- Fully controllable via IR remote control (included)
- Advanced heatsink design for zero fan noise
- Extended IP-rated power and DMX connections
- Secure mounting bracket
- Multiple built-in color presets and auto programs
- User-adjustable program speed and fade times
- 0 to 100% variable electronic dimmer
- Variable electronic strobe
- Durable cast aluminum housing
- Tempered glass lens and watertight internal gaskets
Blizzard Motif Sketch Specs
Light
| Light Type | LED Panel |
| Light Source | 7 x Color LED - 3 W |
| Light Source Life Expectancy | 100,000 Hours |
| Colors | 7 x Red 7 x Green 7 x Blue |
| Photometrics | 25°: 458.9 fc / 4940 Lux at 3.28' / 1 m 120.8 fc / 1300 Lux at 6.56' / 2 m |
| Beam Angle | 25° |
| Shutter / Strobe | Electronic |
| Dimming | Electronic, 0 to 100% |
Performance
| Operating Modes | DMX, Master/Slave, Standalone |
| Macros / Programs | Color Temperature |
| Effects | Strobe |
| Gobos | None |
Control
| Control Protocols | DMX512 |
| DMX Channel Modes | 1 Mode(s): 3-Channel |
| Remote Control | IR Remote (with Included Equipment) |
Connectivity
| Inputs/Outputs | 1 x XLR 3-Pin DMX Input (on Integrated Cable) 1 x XLR 3-Pin DMX Output (on Integrated Cable) |
Power
| AC Input Power | 100 to 260 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x Proprietary Output: 1 x Proprietary |
| Power / Current Consumption | 23 W / 0.26 A |
Environmental
| IP Rating | IP65 |
| Operating Temperature | 104°F / 40°C |
Physical
| Mounting | Mounting Bracket |
| Exterior Color | Black |
| Dimensions | 6.29 x 3.54 x 2.78" / 159.77 x 89.92 x 70.61 mm |
| Weight | 2.9 lb / 1.3 kg |
