Product Details
＋
Description

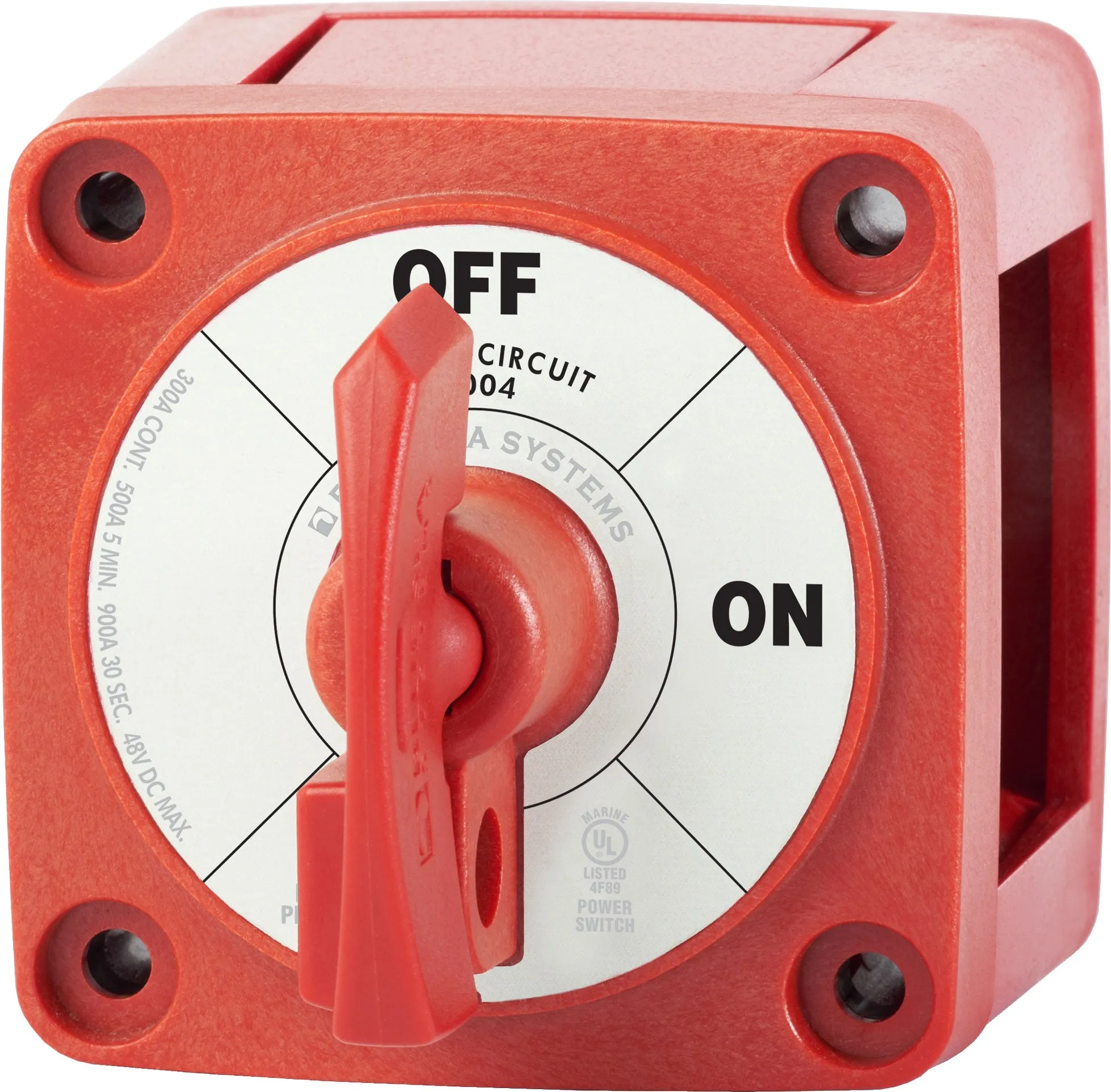

300 Amps continuous rating for outboards and small gasoline or diesel engines
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8" (M10) ring terminals
- 7/8" (22 mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- One-piece stainless flange nuts ensure safe and secure connections

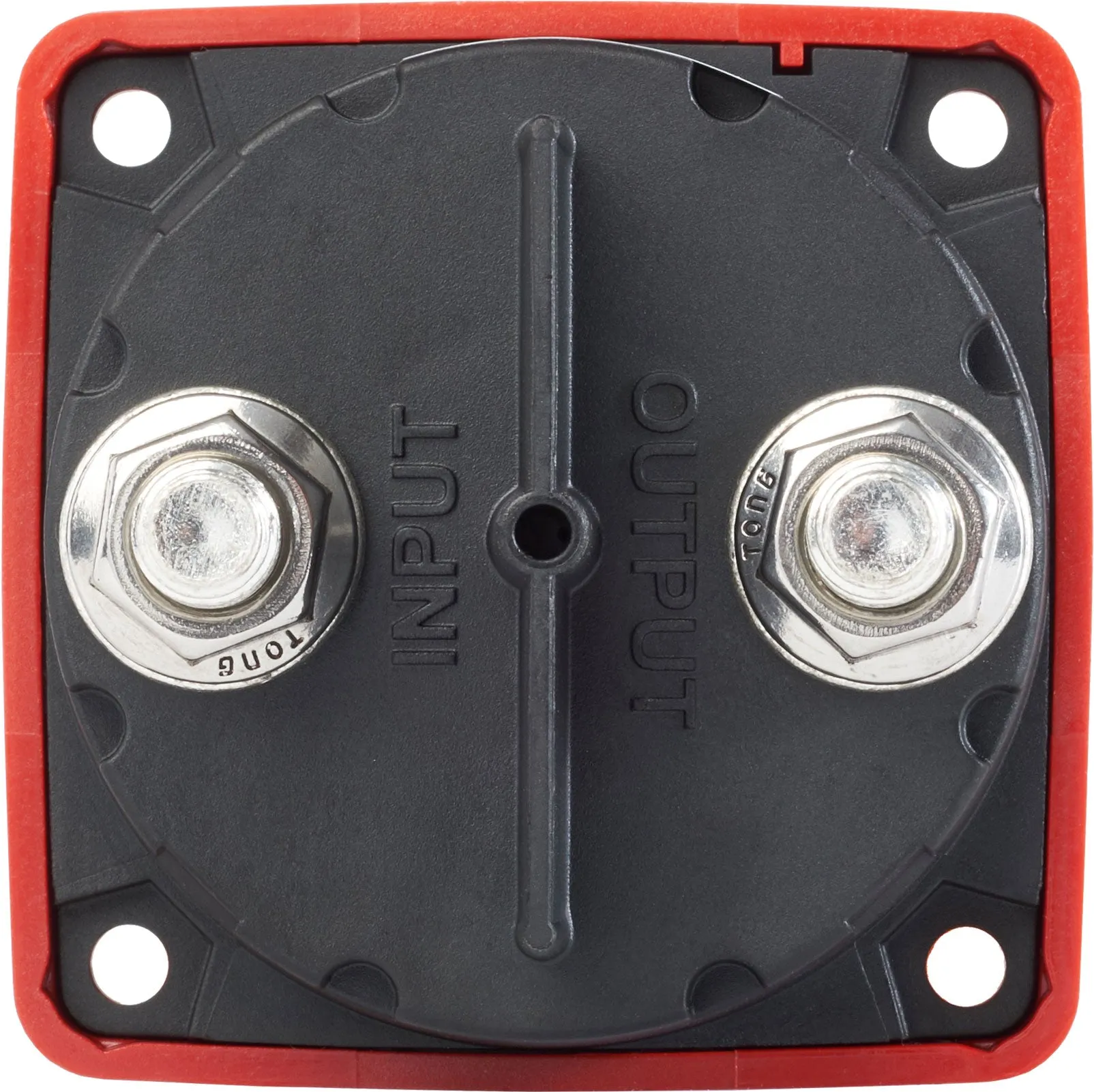

- Isolating cover protects rear contacts
- Breakout tabs allow wire access in any direction
Specifications
| Switch Type | Single Circuit ON-OFF |
| Color | Red |
| Maximum Voltage | 48V DC |
| Stud Size | 3/8" |
| Continuous Rating | 300A |
| Intermittent Rating | 500A |
| Cranking Rating 30 sec | 900A |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.65lb (0.29 kg) |
(6004)
